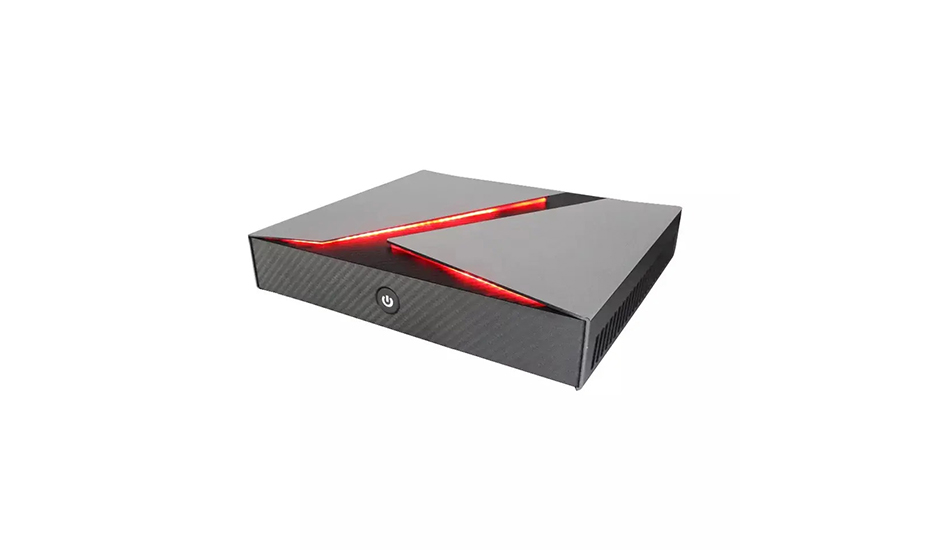

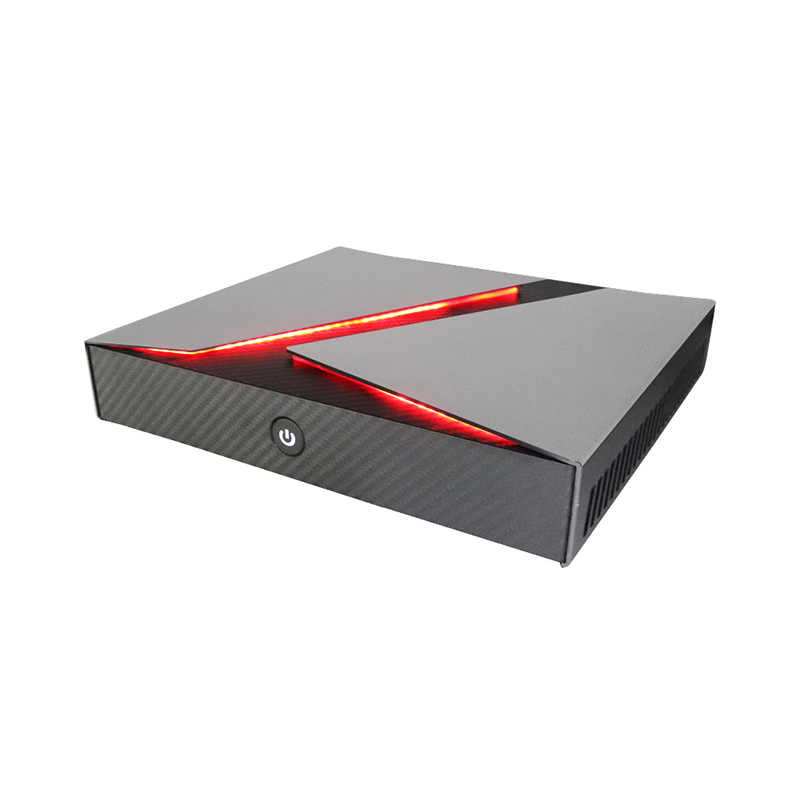

AMbox G5
Intel Core i5 ,i7,i9,Gaming Mini PC,GeForce GTX 1650 4GB GDDR5
SKU: P54985650
$ 0.00
Description
Additional information
| Basic Information: | |
| CPU | Onboard Intel Core i5-9300H / i7-9750H /i9-9880H |
| TDP | 45W |
| BIOS | AMI BIOS |
| Chipset | Intel/DRAM Registers – 3E10 – QM370 |
| Memory | 2 x SO-DIMM DDR4 slot, up to 64GB Dual Channel, DDR4-2666MHz, LPDDR3-2133MHz |
| OS | Windows 8.1/Windows 10/Linux |
| PXE | YES |
| Audio | Intel High Definition Audio Controller Nvidia G70 @ Nvidia High Definition Audio Controller |
| Network | Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100/1000 BaseT LAN |
| Video | Intel UHD Graphics 630 Nvidia GeForce GTX 1650 4GB GDDR5 |

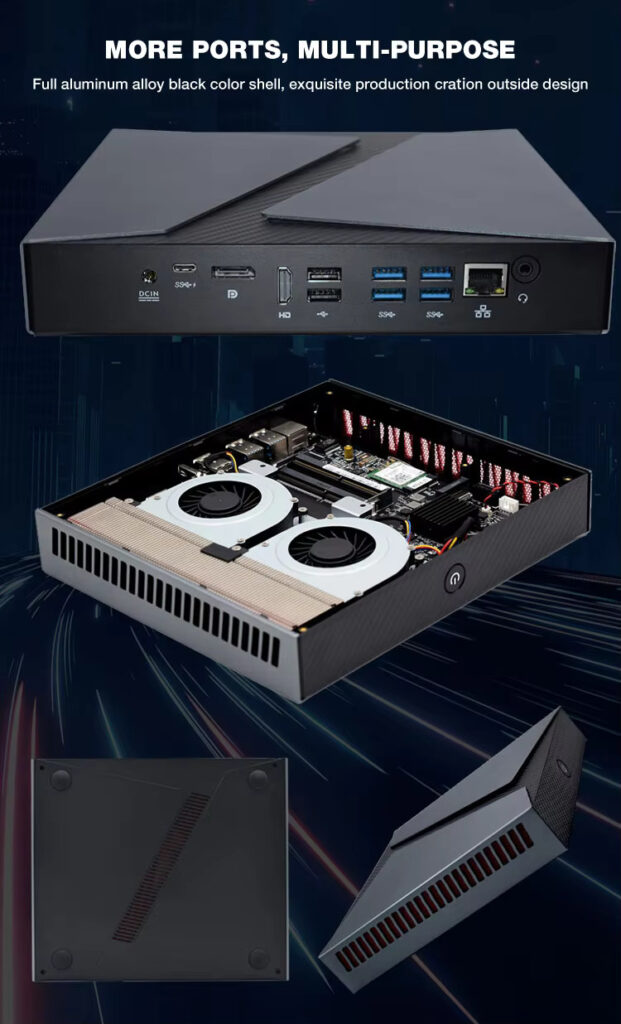

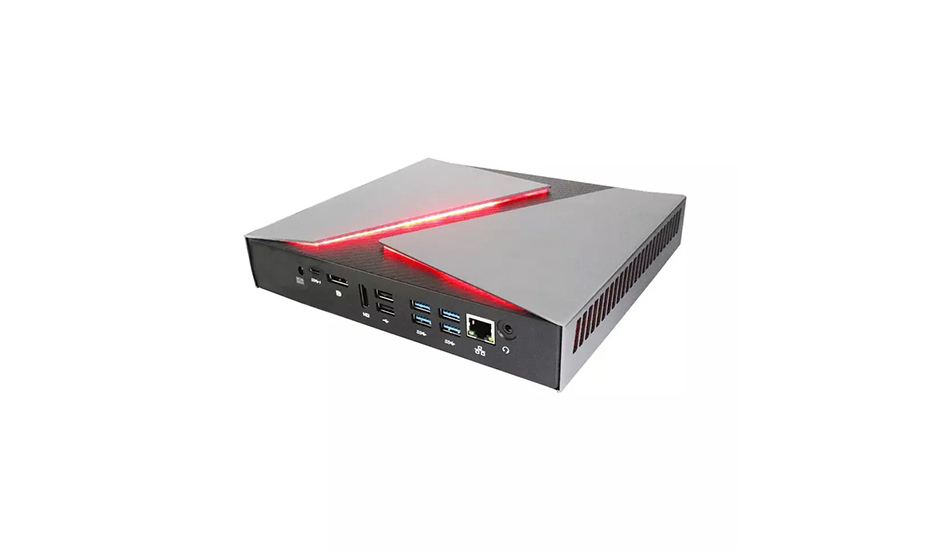

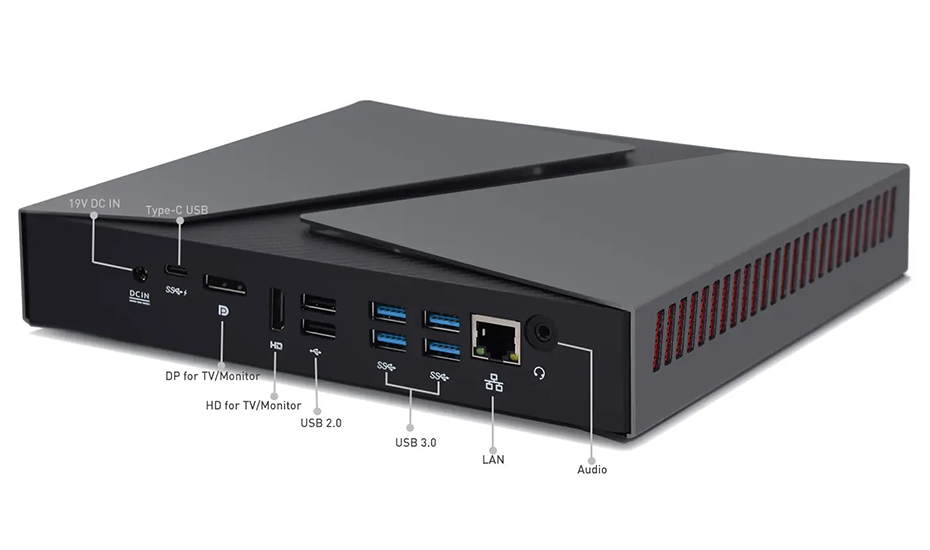

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 5.5mm 19V DC In |
| LED | 1 x LED |
| USB | 2 x USB2.0, 4 x USB3.0 |
| Type-C | 1 x Type-C USB 3.1 |
| Display | 1 x DP, 1 x HDMI |
| LAN | 1 x RJ45 Giga LAN |
| Audio | 3.5mm audio in / line out |
| Expandable | 2 x SATA3.0 slot, 1 x dual channel LVDS pin, 1 x screen backlight control pin |
| Storage | |
| MSATA | 1 x M.2 slot for M.2 22*80 SSD, support 6Gb/s, support PCIE*4 and SATA3.0 |
| SATA | 1 x SATA3.0 slot for 7..0mm 2.5” SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x M.2 NGFF 2230 slot for Wi-Fi module, support 802.11B/G & 802.11B/G/N&AC Bluetooth 4.0 2-in-1 WIFI & BT combo card |
| Antenna | 2 x inner RF cables without external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC 19V-120W |
| Operating Temperature | 0/+70 Centigrade (32~140°F) |
| Storage Temperature | -20/+80 Centigrade (-68~176°F) |
| Relative Humidity | 10%~95% (non-condensing) |
| Product Dimension & Details | |
| Size | 222*195*39mm |
| Weight | Net 1.3kg, Gross 2.5kg |
| Shell | Dark gray color aluminum alloy |
| Cooling Mode | Full copper turbo fan |
| Functions | Auto Power On, WOL, RTC |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables |
